Westwood Neighborhood Greenway Project

Client:City of Los Angeles,Bureau of Engineering

Location:Los Angeles, CA

Description

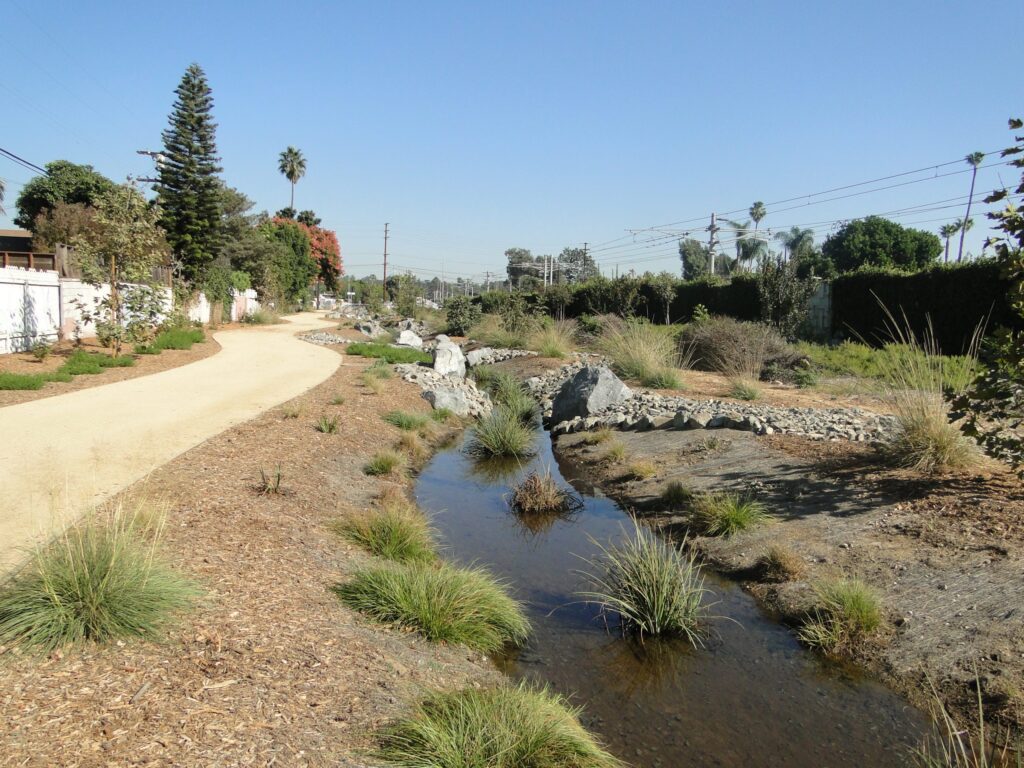

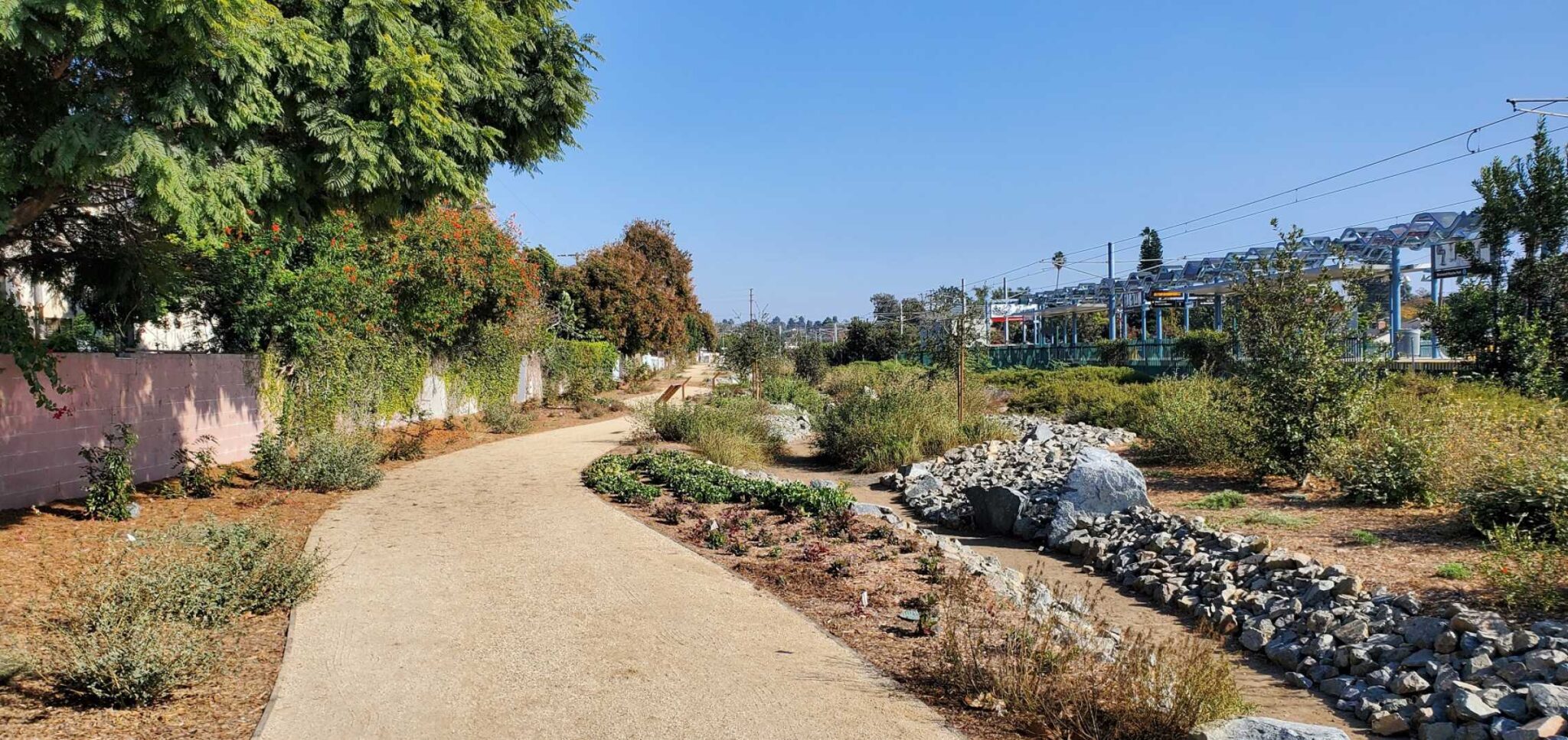

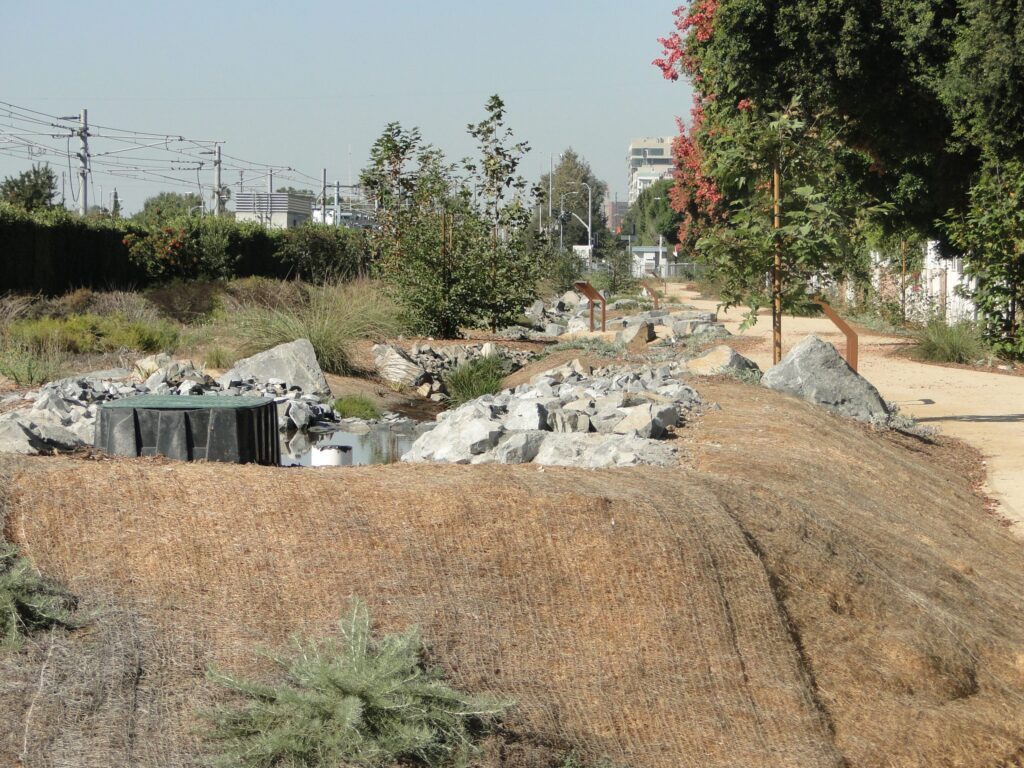

The Westwood Neighborhood Greenway is located in Council District 5 on city-owned parcels on the north and south side of the Metro’s Exposition Light Rail between Overland Ave and Westwood Blvd. The project diverts and cleans stormwater flows and urban runoff (wet and dry-weather) from the Overland storm drain (located in the east side of the area) while providing an island of native habitat for birds, butterflies, and other animals next to one of the nation’s busiest light rail lines.The Overland Avenue storm drain carries spring water and urban runoff water from an area of approximately 2,400 acres. Inside this storm drain, adjacent to the Greenway, the project diverts some of this water to a separator where sediment, debris, and trash are removed. The water then collects in a pump well system and is lifted to the surface where it flows through a sand filter before entering the north vegetated bioswale. Here, biofiltration and sunlight treat and clean the water as it flows westward.Near the Westwood/Rancho Park Station, the water flows into an underground pipe which takes it below the tracks to a second pump well. Here the water is filtered anew and pumped up to the south vegetated bioswale where, again, biofiltration and sunlight treat the water as it flows back towards Overland Avenue to the east.
